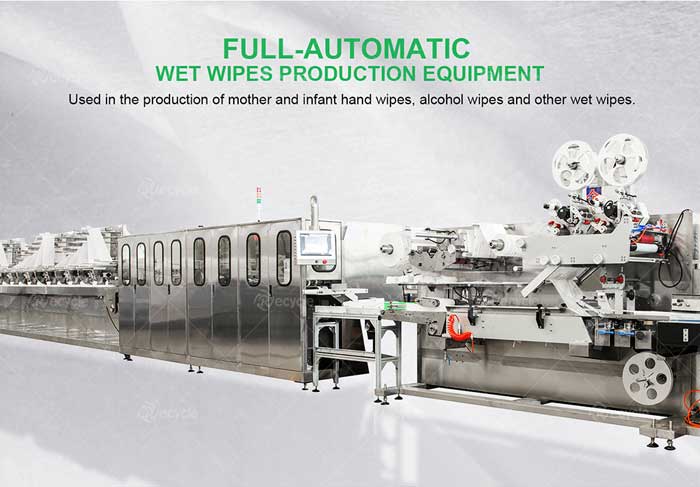

Automatic(30-120pcs/bag)Wet Tissue Packaging Machine

Product Description:

1. SYT16(20) wet wipes production line is used to produce disposable household cleaning wet wipes or baby wipes.

2. Fully automatic wet towel production equipment can meet the needs of enterprises for high production capacity, and multiple models of products can be selected, 30-120pcs/pack.

3. Large cloth cutting range with large throwing knife, automatic connection between cloth placing frame and film placing shaft, reduced time for replacing raw materials,and effectively improved working efficiency;

4. On-line inspection of cloth joints and on-line removal of connection joints ensure the quality of products.

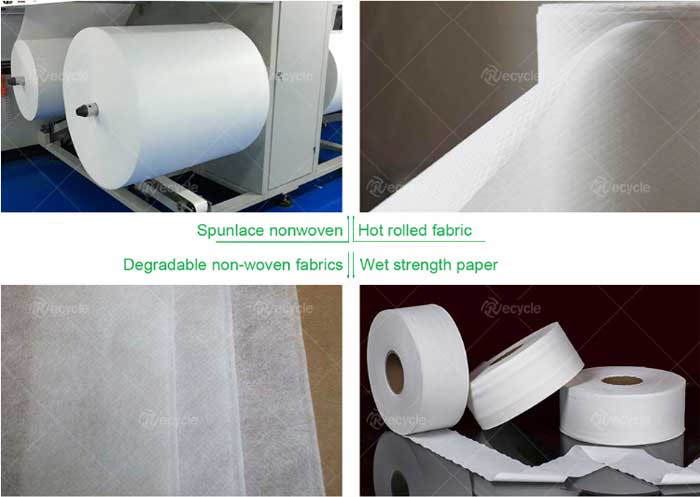

Applicable Materials：

Spunlace nonwoven,Hot rolled fabric,degradable non-woven fabrics,wet strength paper etc.

Specification nonwovens Max width is 1200mm, two independent rolls in one reel shaft.

Applicable packing materials: PET/PE BOPP PET/AL/PE and other hot sealable materials

Film rolling speification: Max width is 420mm, diameter is 360mm.

Applicable labels: transparent labels & non-transparent labels; Metal labels are optional;

Label speification: Max W100mm,φ400mm 2-axis labels are prepared.

Wet Wipe Types：

Wet tissue equipment is used to produce baby wipes, disinfected wet wipes, cleaning wet wipes and other types of wet wipes, wet wipes folding method, a pack of quantity, opening method etc., can be customized and adjusted.

Technical Parameter

Model	SYT16(20)
Raw Material	Spunlace nonwoven, hot-rolling non woven fabric, thermobond
Specifications	35-65GSM.W220mm x 2 Φ1200mm
Folding Ways	lndependent extraction / continuous extraction
Axle Quantity	16 axles raw material rolls, Two rolls on an axle(same paper core)8 axles running with another 8 axles backup (automatic switching)
Axle Diameter	76mm
Wet Wipes Size (L*W)	L110-220mm * W95-110mm
Unfolded Size (L*W)	L110-220mm * W150-330mm
Production Rate	80 bags/minute & 6500 pieces/minute
Power Supply	Three-phase outlet. AC380V,50/60HZ.55KW
Air Supply	0.6-0.8Mpa
General Size	L17500mm *W2000mm *H2100mm
Total Weight	About10000KG
Operation Interface	10’LCD touch screen. English/Chinese language

Packing and Delivery：
